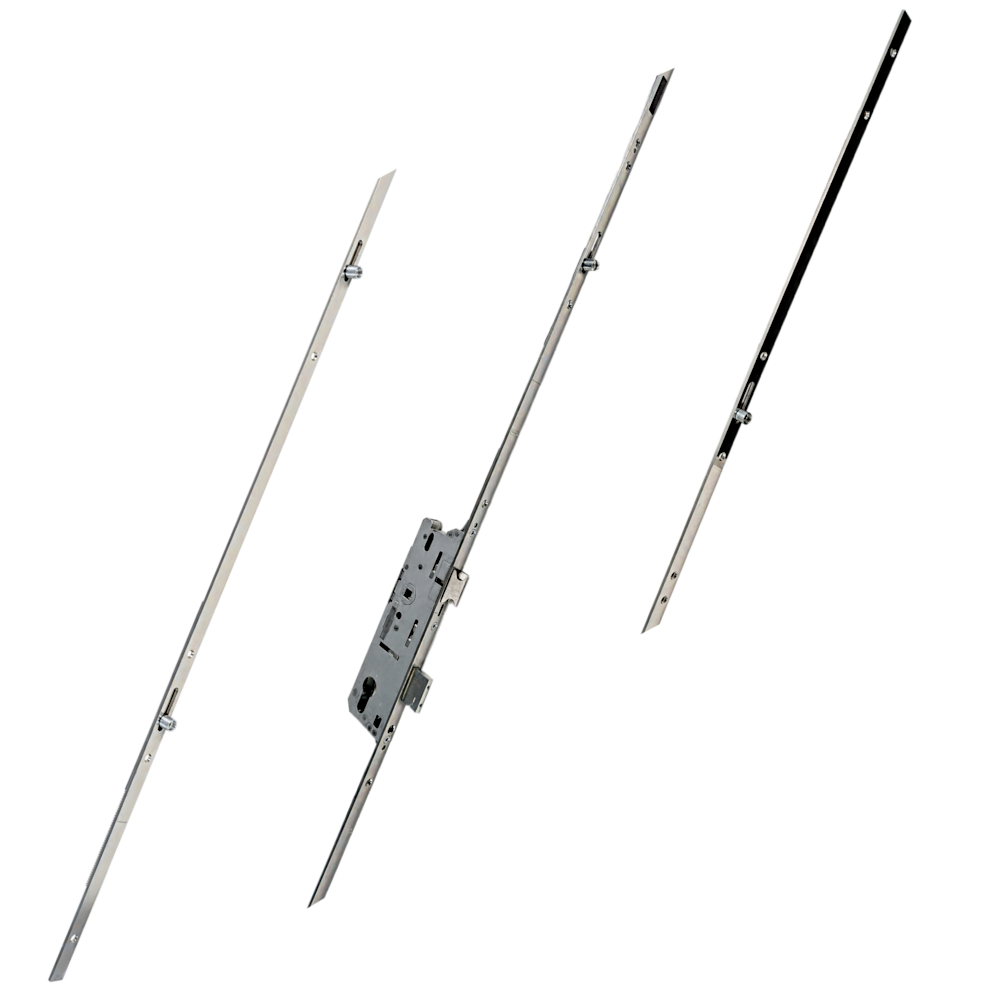

FUHR 859 Type 1 4 Roller Latch & Deadbolt Split Spindle Multipoint – 30/92 Split Spindle

The FUHR 859 Type 1 Lever Operated Latch & Deadbolt – 4 Roller has 30mm or 35mm backset and has 92mm centres.is split spindle and has a latch & deadbolt centre case.  GearboxThe latch & deadbolt gearbox has a split spindle.  Additional Locking PointsIn addition to the locking points within the gearbox, the full length strip has 4 roller locking points.  Faceplate16mm wide faceplate, ideal for use on UPVC & composite applications.  Locking Point DistancesLocking Point Distance A = 337mmLocking Point Distance B = 362mmLocking Point Distance C = 731mmLocking Point Distance D = 780mmCroppableThis full length unit is croppable to allow the strip height to be reduced to suit the door it is being installed into.  HandingThe latch can be reversed by locating the Allen screw on the side of the lockcase, in line with the latch. Remove the screw, pull out and reverse the latch, and refit the Allen screw.  Sprung/UnsprungThe gearbox is sprung and incorporates an internal spring mechanism to assist with lever return, removing the need for sprung handles or a separate spring cassette.  OperationLocking Method – A.  Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock.  One full turn of the key then push down on the lever to unlock.

• 16mm faceplate
• Split spindle
• Latch & deadbolt
• Euro profile lock case
• 4 rollers
